Create Target Applications Architecture

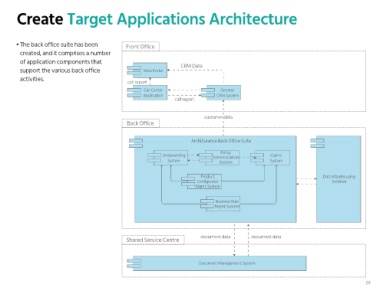

• The back office suite has been
Front Office
created, and it comprises a number
of application components that
CRM Data
support the various back office Web Portal
activities.
call report
Call Center General
Application CRM System
call report
customer data
Back Office
ArchiSurance Back Office Suite
Policy
Underwriting Administration Claims
System System System
Product Data Warehousing
Configurator Solution
Mgmt. System
Business Rule
Mgmt. System
document data document data
Shared Service Centre
Document Management System
